Connectors

Connectors are the bridge between ApexMCP and your data sources. Each connector you add automatically generates a set of MCP tools that AI agents can call.

Supported Connector Types

Relational databases

Data warehouses & big data

Document & object stores

APIs & web protocols

Spreadsheets

MCP proxy

Adding a Connector

1. Go to Connectors → New Connector in the dashboard
2. Select the connector type
3. Fill in connection details (host, port, credentials, etc.)
4. Click Test Connection to verify
5. Click Save — schema discovery runs automatically

PostgreSQL Example

Type:     PostgreSQL
Host:     db.example.com
Port:     5432
Database: mydb
Username: apexmcp_ro
Password: ••••••••••
SSL:      Required

For least-privilege, create a dedicated read-only database user:

CREATE USER apexmcp_ro WITH PASSWORD 'strongpassword';
GRANT CONNECT ON DATABASE mydb TO apexmcp_ro;
GRANT USAGE ON SCHEMA public TO apexmcp_ro;
GRANT SELECT ON ALL TABLES IN SCHEMA public TO apexmcp_ro;
ALTER DEFAULT PRIVILEGES IN SCHEMA public GRANT SELECT ON TABLES TO apexmcp_ro;

Credential Storage

All connector credentials are encrypted at rest using AES-256-GCM inside the Credential Vault service. The encryption key is stored separately from the ciphertext. Credentials are:

• Never returned via API after initial save
• Decrypted in-memory only when executing a tool call
• Rotatable — update credentials without changing the connector ID or regenerating tools

Schema Discovery

After saving a connector, ApexMCP introspects the data source and generates MCP tool definitions:

• SQL databases: one tool per table/view with a sql parameter for safe parameterised queries
• REST APIs: one tool per defined operation
• Google Sheets: read_range and write_range tools per spreadsheet
• gRPC: one tool per service method

Tools are named {action}_{connector_type}_{resource}, e.g.:

• query_postgres_orders
• read_sheets_q1_pipeline
• call_grpc_user_service_get_user

Re-run schema discovery at any time via Connectors → [name] → Refresh Schema.

Connector-Level Scope Restriction

Limit an API key or OAuth client to a specific connector using the scoped format:

mcp:call:<connector-id>

Example: restrict an agent to only the reporting database:

# OAuth token scoped to one connector
curl -X POST https://gateway.apexmcp.ai/oauth/token \
  -d "grant_type=client_credentials" \
  -d "client_id=apx_client_xxxxxxxx" \
  -d "client_secret=apx_secret_xxxxxxxx" \
  -d "scope=mcp:call:conn_01j9x8k2m3n4p5q6r7s8t9u0v1"

The returned token can only call tools from that specific connector. All other tools return a 403 with error code -32003 (insufficient scope).

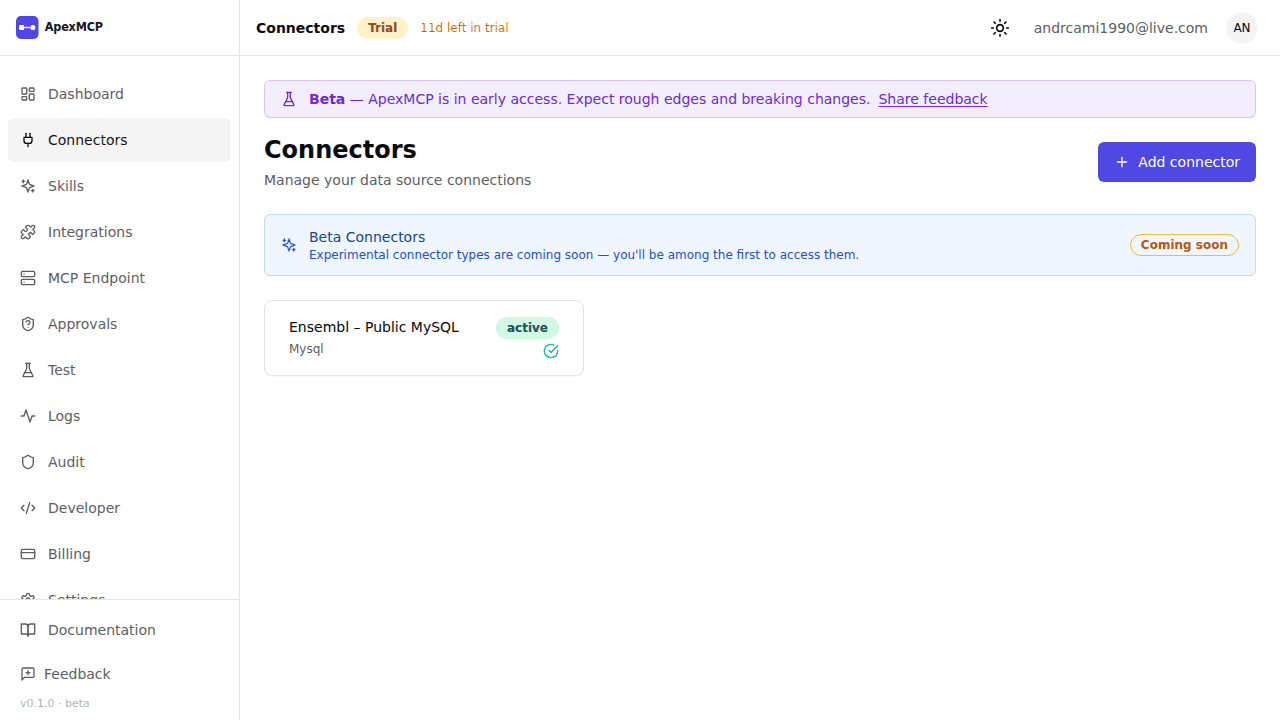

Connector Status

Connectors show real-time health in the dashboard:
